How to connect a temperature sensor to the hub

1. Locate the 1-Wire terminal on the hub controller

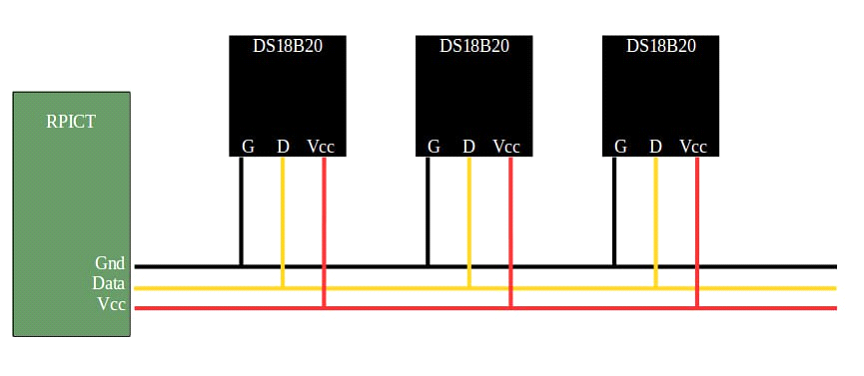

2. Connect the temperature sensor to the terminal according to the wiring diagram

If you are connecting multiple sensors, use a parallel wiring configuration. This allows the system to detect and identify each sensor individually.

Make sure the wiring polarity is correct
Do not exceed the recommended number of sensors connected to a single 1-Wire bus
